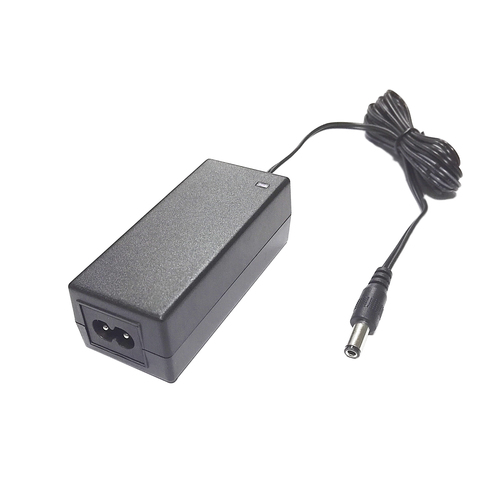

12W desktop adapter
Features:
- Ultra Slim
- Universal AC input/Full range
- Energy efficiency Level V1
- Protections: short circuit/Over load / Over voltage
- 2 years warranty
Applications:
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipment
- Power sourcing equipment of PoE, POS.
| Output Voltage | Output Current | Ripple & Noise (Note 2) | Voltage Accuracy (Note 1) | Line Regulation (Note 3) | Load Regulation (Note 4) | Max Output Power |
|---|---|---|---|---|---|---|
| 3.6V - 5.5V | 2000mA | 150mA | ±5%. | ±1%. | ±5%. | 11.00W |
| 5.6V – 8.9V | 1960mA | 150mA | ±5%. | ±1%. | ±5%. | 11.16W |
| 9.0V | 1400mA | 150mA | ±5%. | ±1%. | ±5%. | 12.60W |
| 9.1V-11.8V | 1310mA | 150mA | ±5%. | ±1%. | ±5%. | 12.00W |
| 11.9V-12.6V | 1000mA | 150mA | ±5%. | ±1%. | ±5%. | 12.60W |
| 12.7V-19.0V | 940mA | 150mA | ±5%. | ±1%. | ±5%. | 12.06W |
| 19.1V-30.7V | 620mA | 150mA | ±5%. | ±1%. | ±5%. | 12.00W |
| 30.8V-32.0V | 380mA | 150mA | ±5%. | ±1%. | ±5%. | 12.16W |
