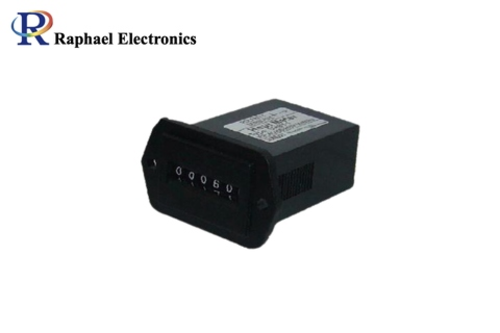

Quartz Crystal Oscillator Shakes Timer Counter

FH6Y series is quartz-crystal-controlled and enclosed type counter up timer. The quartz oscillators are most suited for industrial machines, agricultural machines, and vehicles as task meter and motor for service and maintenance. Contact us via email.

Description

• This FH6Y series is quartz-crystal-controlled and enclosed type counter.
• Quartz oscillators is as known as common counter up timer.

Advantages

• The quartz oscillators are latest mechanical design,
• They are high precision.
• Also, they are reliable and stable so they provide competition to your business.
• They are durable but the price is low.
• You can apply on many situations.
• And, they are easy to use.
• We provide precise OEM , ODM, OBM services.

Specification

• Counts the Scope: 99999.9 Hours
• Reset: No Reset
• Fixed Working Voltage: DC12V-DC36V / AC110V~AC250V
• Power: 0.3W
• Ambient Temperature: -10°C~50°C
• Relative Temperature: The entire seal, does not have the seal < 85%
• Earthquake Resistance Scope: 10~70Hz 1-8g

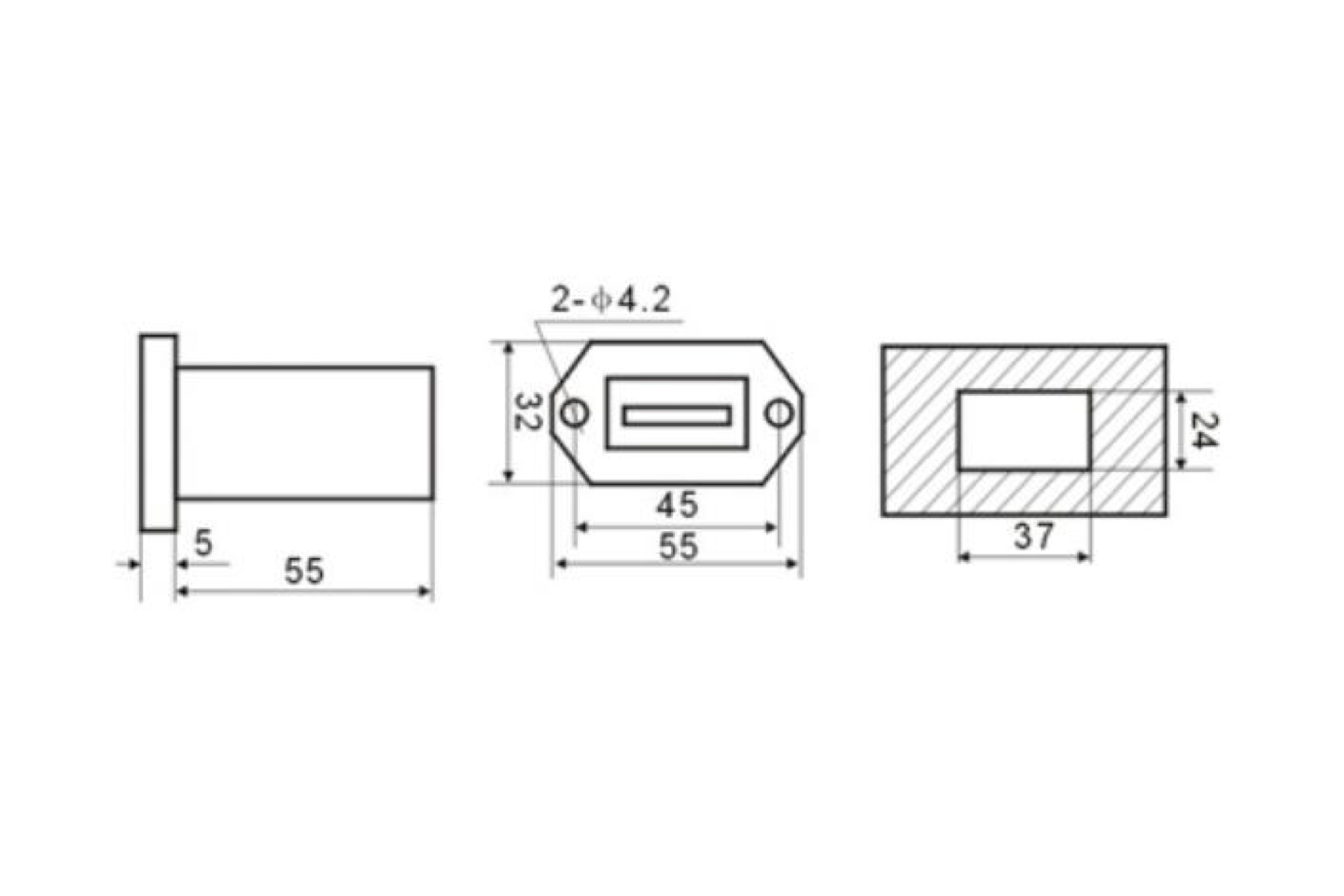

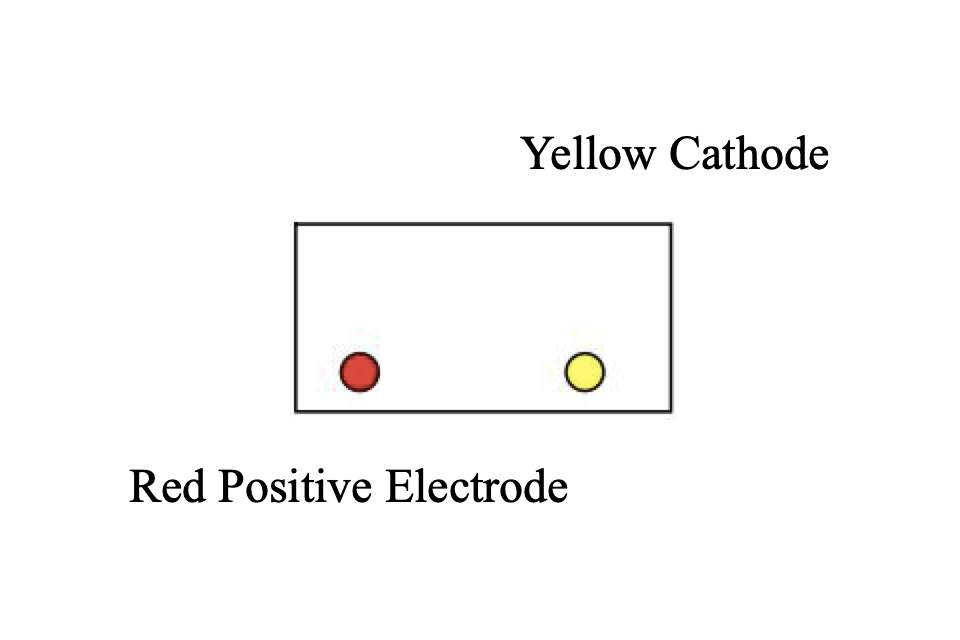

• Dimension: Connection Diagrams:
