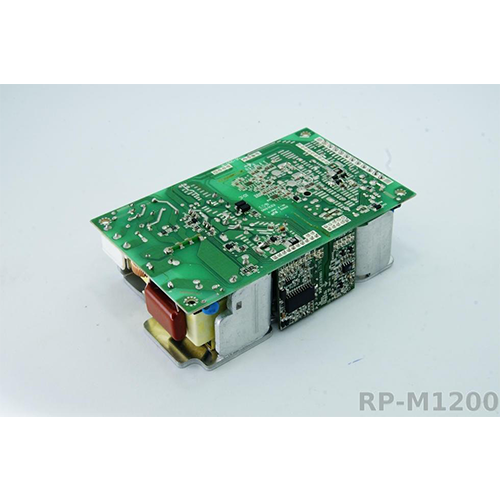

.png "Open Frame Medical Power Supply |Products|Medical Power Supply")
.png)
we offer you all kinds of power supply with Raphael
Key Features
Features
- CEC Compliance
- High Efficiency
- RoHS Compliance
- Over Voltage Protective Installation
- Over Current Protective Installation
- Short Circuit Protective Installationㆍ 100% Burn-In
- 100% Hi-Pot Tested
- MTBF > 50,000 hours
Electrical Specifications
| MODEL NO. | OUTPUT | OUTPUT NO. | OUTPUT VOLTAGE (Vdc) | OUTPUT LOAD(A) | LOAD REGULATION | RIPPLE & NOISE | |
|---|---|---|---|---|---|---|---|
| Single output | RPM1WWWXXYZ | 100~200W | Main Power | 5~56V | 2.59~20A | ±3% Max. | 2%Max |
| Dual output | RPM2WWWXXYZ | 100~180W | Main Power/DC-DC | 5~56V | 2.48~18.0A | ±3% Max. | 2% Max |
| Stand-by or -12V | 5Vsb or~12V | 0~2A or 0~0.5A | ±3 or 10% Max. | ||||
| Triple output | RPM3WWWXXYZ | 100~175W | Main Power | 10~56V | 2.63~13.3A | ±3% Max. | 2% Max |
| Stand-by Power | 5Vsb | 0~2A | ±3% Max. | ||||
| DC-DC or -12V | 5/12V or~12V | 0~5A or 0~0.5A | ±3 or 10% Max. | ||||
| Quad output | RPM4WWWXXYZ | 100~175W | Main Power | 10~24V | 3.0~11.16A | ±3% Max. | 2% Max |
| DC-DC Power | 5,12V | 0~5A or 0~0.5A | ±3% Max. | ||||
| -12V Power | -12V | 0~0.5A | ±10% Max. | ||||
| Stand-by Power | 5Vsb | 0~2A | ±3% Max. | ||||
INPUT
- Input Range 90~264Vac
- Input Current ≦ 3.0A
- Inrush Current ≦ 120A peak@220 VAC, cold start @25℃ ≥ 85% depends on models Meet CEC Level V."
- Turn on Time ≦3S
OUTPUT
- Over Voltage Protection Latch off or Auto Recovery
- Short Circuit Protection Latch off or Auto Recovery
- Over Current Protection Latch off or Auto Recovery
ENVIRONMENTAL
- Operating Temperature 0~50℃
- Storage Temperature -20 to 85℃
- Storage Humidity 5% to 95%
SAFETY
UL/CUL,TUV,CB,CE,FCC
