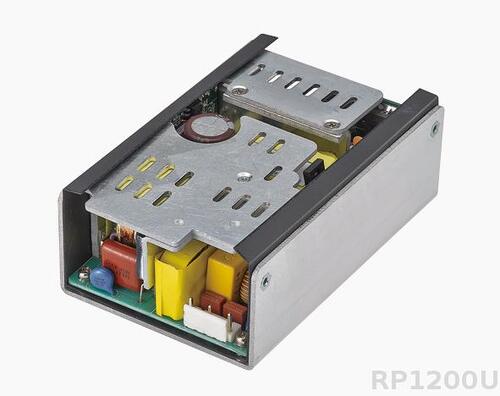

Power Supply
Key Features
Features
- CEC Compliance
- High Efficiency
- RoHS Compliance
- Over Voltage Protective Installation
- Over Current Protective Installation
- Short Circuit Protective Installation
- 100% Burn-In
- 100% Hi-Pot Tested
- MTBF > 50,000 hours
RP V WWW XX Y Z
V : The number of output group
WWW : Total Power
XX : Main Power voltage
Y : Secondary voltage coding
Z : Serial numbeR
| Single output RP1WWWXXYZU | |
|---|---|
| OUTPUT POWER (W) | 80~120W |
| OUTPUT NO. | Main Power |
| OUTPUT VOLTAGE (Vdc) | 5,12,18,19,24,36,48V |
| OUTPUT LOAD (A) | 2.5~16A |
| LOAD REGULATION | ± 3% Max. |
| RIPPLE NOISE | 2% Max |
| Dual output RP2WWWXXYZ | |
|---|---|
| OUTPUT POWER (W) | 86~110w |
| OUTPUT NO. | Main Power |
| Stand-by or -12V | |
| OUTPUT VOLTAGE (Vdc) | 5,12,19,24,36,48V |
| 5Vsb or -12V | |
| OUTPUT LOAD (A) | 2.08~16A |
| 0.5~2A | |
| LOAD REGULATION | ± 3% Max. |
| ± 3 or 10% Max. | |
| RIPPLE NOISE | 2% Max |
| Triple output RP3WWWXXYZ | |
|---|---|
| OUTPUT POWER (W) | 90~110W |
| OUTPUT NO. | Main Power |
| Stand-by Power | |
| DC-DC or -12V | |
| OUTPUT VOLTAGE (Vdc) | 5,12,19,24,36,48V |
| 5Vsb | |
| 5/12V or -12V | |
| OUTPUT LOAD (A) | 1.96~14.8A |
| 2A | |
| 0.5~3A | |
| LOAD REGULATION | ± 3% Max.. |
| ± 3% Max. | |
| ± 3 or 10% Max. | |
| RIPPLE NOISE | 2% Max |
| Quad output RP4WWWXXYZ | |
|---|---|
| OUTPUT POWER (W) | 110W |
| OUTPUT NO. | Main Power |
| DC - DC Power | |
| -12V Power | |
| Stand-by Power | |
| OUTPUT VOLTAGE (Vdc) | 12,19,24V |
| 5,12V | |
| -12V | |
| 5Vsb | |
| OUTPUT LOAD (A) | 2.42~7A |
| 2~3A | |
| 0.5A | |
| 2A | |
| LOAD REGULATION | ± 3% Max. |
| ± 3% Max. | |
| ± 10% Max. | |
| ± 3% Max. | |
| RIPPLE NOISE | 2% Max |
NOTE:
1. Ripple & Noise is measured by using 20Ml-z bandwidth inited osclloscope and terminated each output with a o. 1uF ceramic capacitor & parallel with 47UF aluminum capacitor at full load and nominal line.
2. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3. Max. Power (W) ≥2Vo x lo
INPUT
- Input Range 90 -264Vac
- Input Current ≦2.5A
- Inrush Current ≦120A peak @220VAC,cold start@25%C
- Efficiency ≦80%~87% depends on models.
- Turn On Time ≦3S
OUTPUT
- Over Voltage Protection Latch off or Auto Recovery
- Short Circuit Protection Latch off or Auto Recovery
- Over Current Protection Latch off or Auto Recovery
ENVIRONMENTAL
- Operating Temperature 0 to 50*C
- Storage Temperature -20 to 85%C
- Storage Humidity 5% to 95 %
SAFETY
UL/CUL, TUV, CB, CE, FCC
