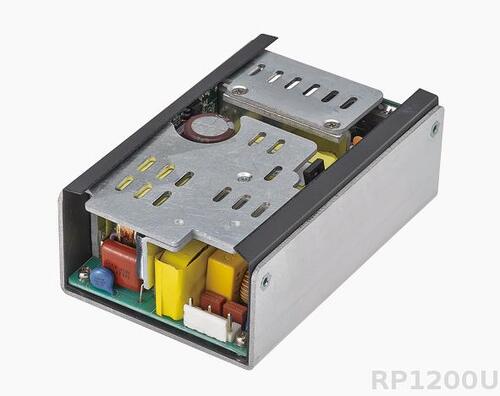

Key Features
Features
- CEC Compliance
- High Efficiency
- RoHS Compliance
- Over Voltage Protective Installation
- Over Current Protective Installation
- Short Circuit Protective Installation
- 100% Burn-In
- 100% Hi-Pot Tested
- MTBF > 50,000 hours
EP V WWW XX Y Z U
V : The number of output group
WWW : Total Power
XX : Main Power voltage
Y : Secondary voltage coding
Z : Serial number
U : U-Bracket
NOTE:
1. Ripple & Noise is measured by using 20MlHiz bandwidth limited oscilloscope and terminated each output with a 0. 1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2. Line regulation is defined by changing +10% of input voltage from nominal line at rated load.
3. Max. Power (W) zVo x Io
| Single output RP1WWWXXYZU | |
|---|---|
| OUTPUT POWER (W) | 100~200W |
| OUTPUT NO. | Main Power |
| OUTPUT VOLTAGE (Vdc) | 5~56V |
| OUTPUT LOAD (A) | 2.59~20A |
| LOAD REGULATION | +/-3% Max. |
| RIPPLE NOISE | 2% Max |
| Dual output RP2WWXXYZU | |
|---|---|
| OUTPUT POWER (W) | 100~180W |
| OUTPUT NO. | Main Power/DC-DC |
| Stand-by or -12V | |
| OUTPUT VOLTAGE (Vdc) | 5~56V |
| 5Vsb or -12V | |
| OUTPUT LOAD (A) | 2.48~18.0A |
| 0~2A or 0~0.5A | |
| LOAD REGULATION | +/-3% Max. |
| +/-3 or 10% Max. | |
| RIPPLE NOISE | 2% Max |
| 2% Max | |
| Triple output RP4WWWXXYZU | |
|---|---|
| OUTPUT POWER (W) | 100~175W |
| OUTPUT NO. | Main Power |
| Stand-by Power | |
| DC-DC or -12V | |
| OUTPUT VOLTAGE (Vdc) | 10~56V |
| 5Vsb | |
| 5/12V or -12V | |
| OUTPUT LOAD (A) | 2.63~13.3A |
| 0~2A | |
| 0~5A or 0~0.5A | |
| LOAD REGULATION | +/-3% Max. |
| +/-3% Max. | |
| +/-3 or 10% Max. | |
| RIPPLE NOISE | 2% Max |
| Quad output RP4WWWXXYZ | |
|---|---|
| OUTPUT POWER (W) | 100~175W |
| OUTPUT NO. | Main Power |
| DC - DC Power | |
| -12V Power | |
| Stand-by Power | |
| OUTPUT VOLTAGE (Vdc) | 10~24V |
| 5,12V | |
| -12V | |
| 5Vsb | |
| OUTPUT LOAD (A) | 3.0~11.16A |
| 0~5A or 0~0.5A | |
| 0~0.5A | |
| 0~2A | |
| LOAD REGULATION | +/-3% Max. |
| 0~5A or 0~0.5A | |
| 0~0.5A | |
| 0~2A | |
| RIPPLE NOISE | 2% Max |
INPUT
- Input Range 90 -264Vac
- Input Current ≦2.5A
- Inrush Current ≦120A peak @220VAC,cold start@25%C
- Efficiency ≧85% depends on models. Meet CEC Level V.
- Turn On Time ≦3S
OUTPUT
- Over Voltage Protection Latch off
- Short Circuit Protection Latch off
- Over Current Protection Latch off
ENVIRONMENTAL
- Operating Temperature 0 to 50*C
- Storage Temperature -20 to 85%C
- Storage Humidity 5% to 95 %
SAFETY
UL/CUL, TUV, CB, CE, FCC
