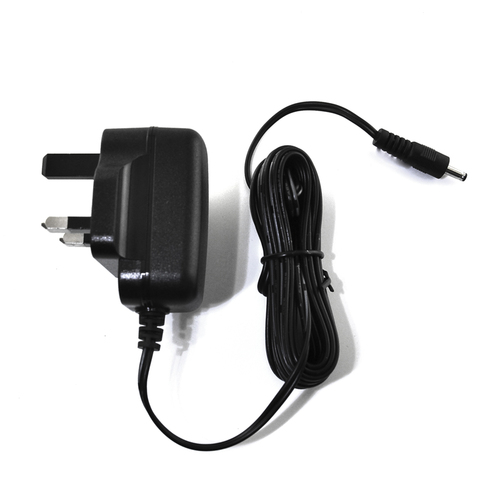

6W switching Ac-Dc adapter UK Horizontal Type
RT05W series 6W switching AC-DC adapter Horizontal type
Universal Input Range: 90 - 264Vac
Continuous Short Circuit Protection
Over Voltage Protection
Meet CEC & ErP Level V1
| Output Voltage | Output Current | Ripple & Noise (Note 2) | Voltage Accuracy (Note 1) | Line Regulation (Note 3) | Load Regulation (Note 4) | Max Output Power |
|---|---|---|---|---|---|---|
| 3.6V - 5.0V | 1200mA | 250mA | ±5%. | ±2%. | ±5%. | 6.0W |
| 5.1V - 6.0V | 1000mA | 150mA | ±5%. | ±2%. | ±5%. | 6.0W |
| 7.0 V - 12V | 660mA | 150mA | ±5%. | ±2%. | ±5%. | 6.0W |
