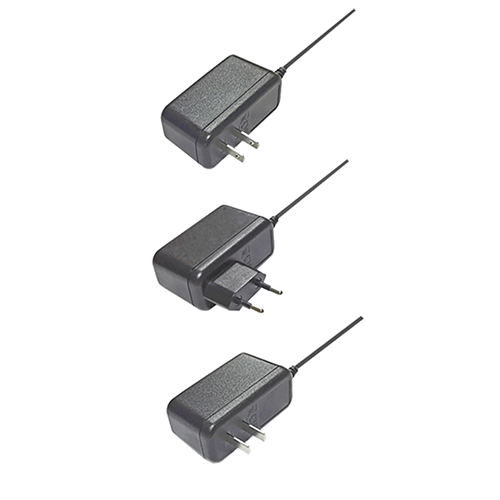

12V 1A switching Ac-Dc Adapter Chinese Vertical Type
RT12W series 12W switching AC-DC adapter Horizontal type
Universal Input Range: 90 - 264Vac
Continuous Short Circuit Protection
Over Voltage Protection
Meet CEC & ErP Level V1
| Output Voltage | Output Current | Ripple & Noise (Note 2) | Voltage Accuracy (Note 1) | Line Regulation (Note 3) | Load Regulation (Note 4) | Max Output Power |
|---|---|---|---|---|---|---|
| 3.6V - 5.5V | 2000mA | 150mA | ±5%. | ±1%. | ±5%. | 11.00W |
| 5.6V - 8.9V | 1960mA | 150mA | ±5%. | ±1%. | ±5%. | 11.16W |
| 9.0V | 1400mA | 150mA | ±5%. | ±1%. | ±5%. | 12.60W |
| 9.1V-11.8V | 1310mA | 150mA | ±5%. | ±1%. | ±5%. | 12.00W |
| 11.9V-12.6V | 1000mA | 150mA | ±5%. | ±1%. | ±5%. | 12.60W |
| 12.7V-19.0V | 940mA | 150mA | ±5%. | ±1%. | ±5%. | 12.06W |
| 19.1V-30.7V | 620mA | 150mA | ±5%. | ±1%. | ±5%. | 12.00W |
| 30.8V-32.0V | 380mA | 150mA | ±5%. | ±1%. | ±5%. | 12.16W |
