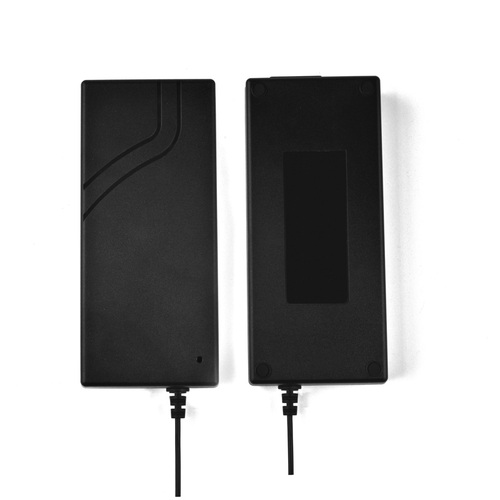

200W Switching AC-DC High Reliability Slim Desktop Adapter
Features:
- AC inlet: C14, C6, C8
- No load power consumption < 0.075W
- Universal AC input/Full range
- Energy efficiency Level V1
- NRC an, AU GEMS, EU ErP and CoC version 5
- Protections: short circuit/Over load / Over voltage
- Fanless design with-10℃ to +40 ℃.
- Fully enclosed plastic casej
- 3 years warranty
Applications:
- Consumer electronic devices
- LED indicator for power on
- Telecommunication devices
- Office facilities
- Industrial equipment
- Power sourcing equipment of LED driver
| Model No. | RT200A1201500R3 | RT200A1900789R3 | RT200A2400625R3 | RT200A3600416B3 | RT200A3600416B3 |
|---|---|---|---|---|---|
| DC Voltage | 12V.dc | 19Vdc | 24Vdc | 36Vdc | 48Vdc |
| Rated Current | 15.00A | 7.89A | 8.33A | 6.11A | 4.58A |
| Current Range | 0.10-15.00A | 0.1A-7.89A | 0.10-8.33A | 0.10-4.16A | 0.1-4.58A |
| Ripple & Noise | Max.300mVp-p | Max.350mVp-p | Max.350mVp-p | Max.350mVp-p | Max.350mVp-p |
| Line Regulation | ±5%. | ±5%. | ±5%. | ±5%. | ±5%. |
| Voltage Tolerance | ±1%. | ±1%. | ±1%. | ±1%. | ±1%. |
| Load Regulation | ±5%. | ±5%. | ±5%. | ±5%. | ±5%. |
| Setup, Rise Time | 2500ms,50ms/230Vac, 3000ms,50ms/115Vac at full load | ||||
| Hold Up Time (Typ.) | 20ms/230Vac 2, 20ms/115Vac at full load | ||||
| Voltage Range | 90-264Vac | ||||
| Frequency Range | 50/60Hz | ||||
| Efficiency | Mim.88% all models | ||||
| AC Current | Max.3.0A | ||||
| Inrush Current | Max, 120A | ||||
| Leakage Current | Max.0.75mA/240Vac | ||||
