UK 5V 4A
Model: RT241050400H
Safety: SAA/EU/CE/GS/UL/CCC-Mark

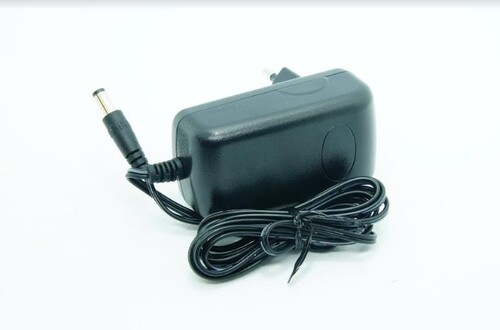

Type:Output 5V 4000mA Plug-In Type Power Supply
Date:2019-12-9
Version:REY. O1
Description
This specifcation defines the performance and characteristics of a adapter, single-phase 5,0 watts.Single output level power supply. This specifcation also defines word wide safely requirements andmanufactures process test requirements.
- Simple design philosophy.
- Overioad Latch-Of protection during either (a) specified power threshold equirements or (b) short circuit condition.
- Reliability level of 50000 hours MTBF & 0.5% annual field failure rate @25%C.
- DC output voltage must be Safe Extra Low Voltage (SELV) & Limited Power as defined by IEC60950-13d edition.
The maximum room ambient temperature, as mentioned in clause 1.4.12 of IEC60950-1 3d edition, for the external power supply is 40C.
DC Output Requirements DC
The power supply shall have one regulated DC outputs of +5V.
The wall defines the total regulation band for the output , which includes line regulation , load regulation ,and effects due to environmental conditions and aging . Voltage shall be measured at the power supply output connector.
| Output | Output Current Range | Output Voltage Range | Ripple/ Noise | ||
|---|---|---|---|---|---|
| type | Min. | Max. | Min. | Max. | Max. |
| +5V | 10mA | 1000mA | +4.75V | +5.25V | 250mV |
Rated input,output with full load, 20MHz bandwidth. Load end connects with 0.1uF ceramic capacitor and 10uF electric capacitor.
Input Conditions
The Supply shall operate over the voltage ranges as follows:
| Input Voltage Variation Range | 90Vac – 264 Vac 50 & 60 Hz |
|---|---|
| Nominal Voltage | 100-240Vac |
| Input Variation Frequency | 47-63Hz |
| Input Nominal Frequency | 50/60Hz |
| Power Consumption (No Loading) | Max 0.1W |
Efficiency
| Supply | Load | Line | Efficiency |
|---|---|---|---|
| Universal | Rated Output | 100– 240 Vac | ≥73.62% |
Output Voltage / Current
| Output# | Voltage | Minimum load | Max load | Peak load |
|---|---|---|---|---|
| 1 | +5V | 10mA | 1000mA | / |
Output Voltage / Current
| Output# | Voltage | Min. Voltage | Max. Voltage | Tolerance |
|---|---|---|---|---|
| 1 | +5V | +4.75V | +5.25V | +/-5% |
Safety Requirements and Certification
| Country | Certified Status | Standard | |
|---|---|---|---|
| GS | Europe | Meet | EN60950-1 |
| CE | Europe | Meet | EN60950-1 |
Temperature
| Operating | 0 ℃- +40 ℃ |
|---|---|
| Non-Operating | -20 ℃- +80 ℃ |
Humidity
| Operating | 5% - 90% (Non Condensing) |
|---|---|
| Non-Operating | 5% - 90% (Non Condensing) |
