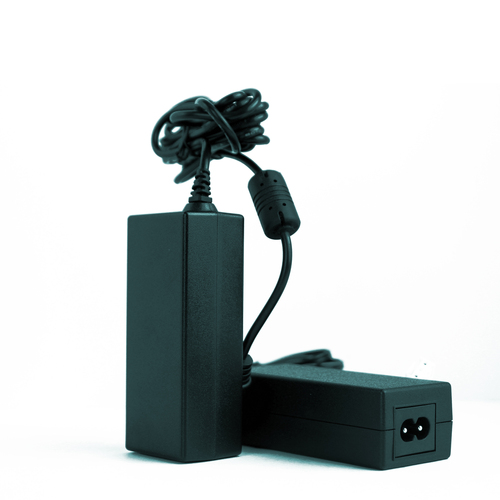

24W AC-DC Desk Top type adapter power
Features:
- AC inlet: C8
- Universal AC input/Full range
- Energy efficiency Level V1
- Protections: short circuit/Over load / Over voltage
- Fan less design with-10 to +40 ℃.
- Fully enclosed plastic casej
- LED indicator for power on
- 3 years warranty
Applications:
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipment
- Power sourcing equipment of LED driver
| Model No. | RT241120200R2 | RT241190126R2 | RT241240100R2 | RT241050400R2 | RT2414800500R23 |
|---|---|---|---|---|---|
| DC Voltage | 12V.dc | 19Vdc | 24Vdc | 5.0Vdc | 48Vdc |
| Rated Current | 2.00A | 1.26A | 1.00A | 4.00A | 0.50A |
| Current Range | 0.10-2.00A | 0.1-1.26A | 0.10-1.00A | 0.10-4.00A | 0.10-0.50A |
| Ripple & Noise | Max.250mVp-p | Max.250mVp-p | Max.250mVp-p | Max.250mVp-p | Max.250mVp-p |
| Line Regulation | ±5%. | ±5%. | ±5%. | ±5%. | ±5%. |
| Voltage Tolerance | ±1%. | ±1%. | ±1%. | ±1%. | ±1%. |
| Load Regulation | ±5%. | ±5%. | ±5%. | ±5%. | ±5%. |
| Setup, Rise Time | 2500ms,50ms/230Vac, 3000ms,50ms/115Vac at full load | ||||
| Hold Up Time (Typ.) | 20ms/230Vac 2, 20ms/115Vac at full load | ||||
| Voltage Range | 90-264Vac | ||||
| Frequency Range | 50/60Hz | ||||
| Efficiency | Mim.86.2% all models | ||||
| AC Current | Max.0.8A | ||||
| Inrush Current | Max, 60A | ||||
| Leakage Current | Max.0.75mA/240Vac | ||||
