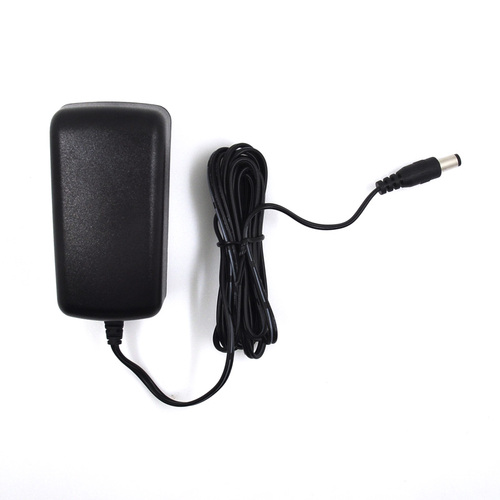

RT24W switching AC-DC adapter USA Horizontal type
Features:
- Ultra Slim
- Universal AC input/Full range
- Energy efficiency Level V1
- Protections: short circuit/Over load / Over voltage
- 2 years warranty
Applications:
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipment
- Power sourcing equipment of PoE, POS.
| Output Voltage | Output Current | Ripple & Noise (Note 2) | Voltage Accuracy (Note 1) | Line Regulation (Note 3) | Load Regulation (Note 4) | Max Output Power |
|---|---|---|---|---|---|---|
| 4.0V - 5.0V | 4000mA | 150mA | ±5%. | ±1%. | ±5%. | 20.00W |
| 5.1V - 6.0V | 3000mA | 150mA | ±5%. | ±1%. | ±5%. | 18.00W |
| 7.0V- 12.0V | 2000mA | 150mA | ±5%. | ±1%. | ±5%. | 24.00W |
| 12.1V-12.6V | 1800mA | 150mA | ±5%. | ±1%. | ±5%. | 22.68W |
| 12.7V-15.0V | 1500mA | 150mA | ±5%. | ±1%. | ±5%. | 22.50W |
| 15.1V-24.0V | 1000mA | 150mA | ±5%. | ±1%. | ±5%. | 24.00W |
