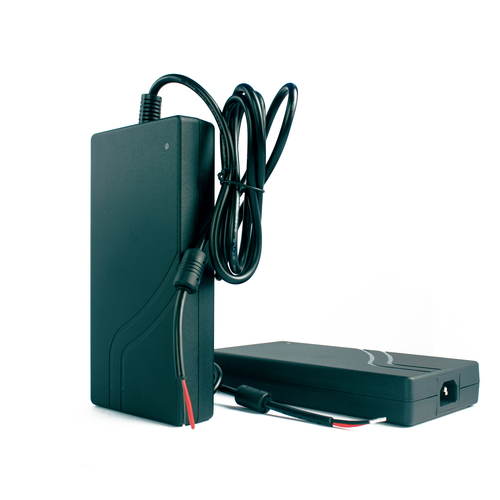

360W switching AC-DC desktop adapter
Features:
- AC inlet: C14, C6, C8
- Built-in Active PFC Function
- No load power consumption < 0.075W
- Universal AC input/Full range
- Energy efficiency Level V1
- NRC an, AU GEMS, EU ErP and CoC version 5
- Protections: short circuit/Over load / Over voltage/ Over temperature
- Fanless design with-10℃ to +40 ℃.
- Fully enclosed plastic casej
- LED indicator for power on
- 3 years warranty
Applications:
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipment
- Power sourcing equipment of LED driver
| Model No. | RT241120200R2 | RT241190126R2 | RT241240100R2 | RT241050400R2 | RT2414800500R2 |
|---|---|---|---|---|---|
| DC Voltage | 12V.dc | 19Vdc | 24Vdc | 36Vdc | 48Vdc |
| Rated Current | 25.00A | 18.9A | 15.00A | 10.00A | 7.50A |
| Current Range | 0.10-25.00A | 0.1A-18.94A | 0.10-15.00A | 0.10-10.00A | 0.1-7.50A |
| Ripple & Noise | Max.300mVp-p | Max.350mVp-p | Max.350mVp-p | Max.350mVp-p | Max.350mVp-p |
| Line Regulation | ±5%. | ±5%. | ±5%. | ±5%. | ±5%. |
| Voltage Tolerance | ±1%. | ±1%. | ±1%. | ±1%. | ±1%. |
| Load Regulation | ±5%. | ±5%. | ±5%. | ±5%. | ±5%. |
| Setup, Rise Time | 2500ms,50ms/230Vac, 3000ms,0ms/115Vac at full load | ||||
| Hold Up Time (Typ.) | 20ms/230Vac 2, 20ms/115Vac at full load | ||||
| Voltage Range | 90-264Vac | ||||
| Power Factor | PF>0.9/230Vac, PF>0.9/115Vac at full load | ||||
| Frequency Range | 50/60Hz | ||||
| Efficiency | Mim.88% all models | ||||
| AC Current | Max.3.0A | ||||
| Inrush Current | Max, 120A | ||||
| Dimension | L200mm x W100mmx, H 40mm | ||||
| Leakage Current | Max.0.75mA/240Vac | ||||
