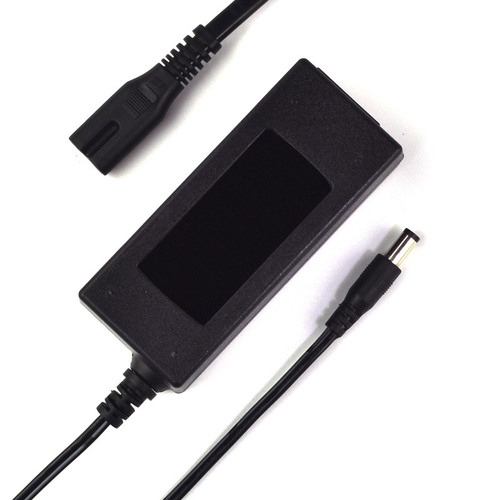

36W AC-DC High Reliability Slim Desk Top Adaptor
Key Features
Features:
- AC inlet: C8, C14, C6
- No load power consumption<0.075W
- Universal AC input/Full range
- Energy efficiency Level V1
- Protections: short circuit/Over load / Over voltage
- Fan less design with-10 to +40 ℃.
- Fully enclosed plastic casej
- LED indicator for power on
- 3 years warranty
Applications:
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipment
- Power sourcing equipment of LED driver
| Model No. | RT36W1120300R3 | RT36W190189R3 | RT36W240150R3 | RT36W360100R3 | RT36W480075R3 |
| DC Voltage | 12V.dc | 19Vdc | 24Vdc | 36Vdc | 48Vdc |
| Rated Current | 3.00A | 1.89A | 1.50A | 100A | 0.75A |
| Current Range | 0.10-3.00A | 0.1-1.89A | 0.10-1.50A | 0.10-1.00A | 0.1-0.75A |
| Ripple & Noise | Max.250mVp-p | Max.250mVp-p | Max.250mVp-p | Max.250mVp-p | Max.250mVp-p |
| Voltage Tolerance | ±5%. | ±5%. | ±5%. | ±5%. | ±5%. |
| Line Regulation | ±1% | ±1% | ±1% | ±1% | ±1% |
| Load Regulation | ±5%. | ±5%. | ±5%. | ±5%. | ±5%. |
| Setup, Rise Time | 2500ms,50ms/230Vac, 3000ms,50ms/115Vac at full load | ||||
| Hold Up Time (Typ.) | 20ms/230Vac 2, 20ms/115Vac at full load | ||||
| Voltage Range | 90-264Vac | ||||
| Frequency Range | 50/60Hz | ||||
| Efficiency | Mim.87.4% all models | ||||
| AC Current | Max.1.0A | ||||
| Inrush Current | Max, 120A | ||||
| Leakage Current | Max.0.75mA/240Vac | ||||
Spec
Connection : Desktop
Type : AC
