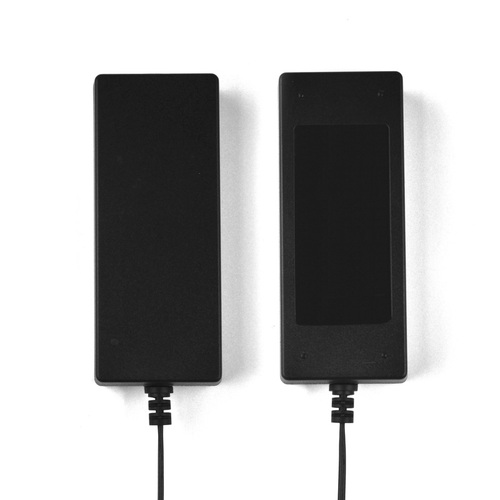

AC /DC POWER ADAPTER SOURCING WITH RAPHAEL
Features:
- AC inlet: C14, C6, C8
- No load power consumption < 0.075W
- Universal AC input/Full range
- Energy efficiency Level V1
- Protections: short circuit/Over load / Over voltage
- Fan less design with-10 to +40 ℃.
- Fully enclosed plastic casej
- LED indicator for power on
- 2 years warranty
Applications:
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipment
- Power sourcing equipment of LED driver
| Model No. | RT60W120500R3 | RT60W190343R3 | RT60W240271R3 | RT60W360166R3 | RT60W480125R3 |
|---|---|---|---|---|---|
| DC Voltage | 12V.dc | 19Vdc | 24Vdc | 36Vdc | 48Vdc |
| Rated Current | 5.00A | 3.43A | 2.71A | 1.66A | 1.25A |
| Current Range | 0.10-5.00A | 0.1-3.43A | 0.10-2.71A | 0.10-1.66A | 0.1-1.25A |
| Ripple & Noise | Max.250mVp-p | Max.250mVp-p | Max.250mVp-p | Max.250mVp-p | Max.250mVp-p |
| Voltage Tolerance | ±5%. | ±5%. | ±5%. | ±5%. | ±5%. |
| Line Regulation | ±5%. | ±5%. | ±5%. | ±5%. | ±5%. |
| Load Regulation | ±5%. | ±5%. | ±5%. | ±5%. | ±5%. |
| Setup, Rise Time | 2500ms,50ms/230Vac, 3000ms,50ms/115Vac at full load | ||||
| Hold Up Time (Typ.) | 20ms/230Vac 2, 20ms/115Vac at full load | ||||
| Voltage Range | 90-264Vac | ||||
| Frequency Range | 50/60Hz | ||||
| Efficiency | Mim.88% all models | ||||
| AC Current | Max.1.3A | ||||
| Inrush Current | Max, 120A | ||||
| Leakage Current | Max.0.75mA/240Vac | ||||
